Thermal desorption

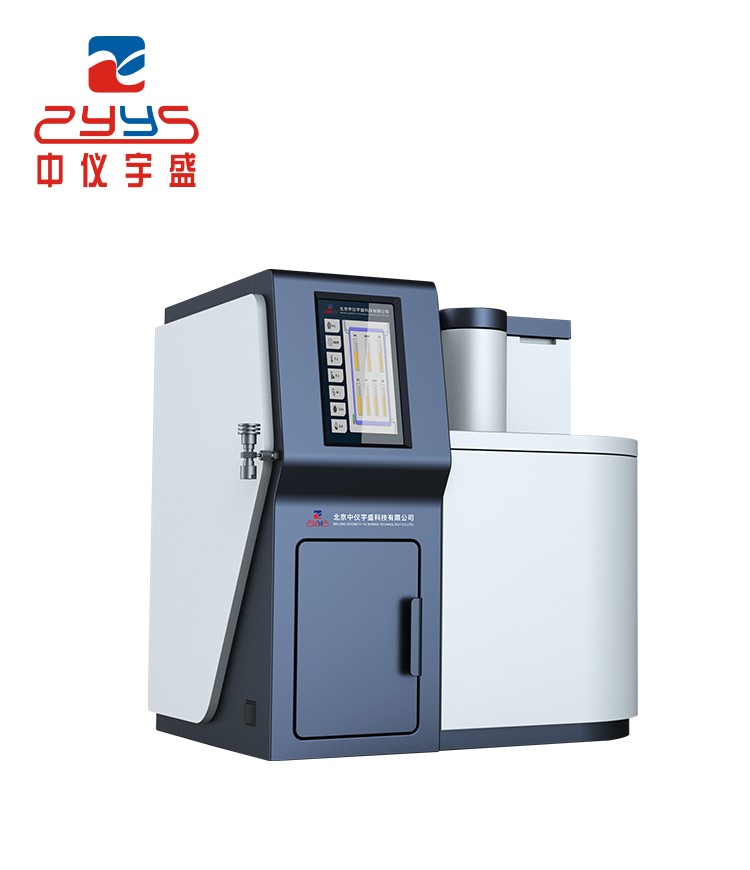

ATDS-20A automatic thermal desorption device
1、Can automatically run 20 samples, automatically detect after loading the sample tray, without the need for personnel on duty
2、Power-on self check, fault alarm and prompt, automatic positioning and calibration of sample disk using independent patented technology
3、Industrial computer software+control board program control, main functions include:
a. Method parameter setting, real-time animation display of working status, and running time
b. Desorption zone, injection valve, sample transfer tube, and secondary desorption zone, all four channels are individually heated and temperature controlled
c. Set up the analysis program and press the start button to automatically complete all sample analysis
4、This machine comes with a standard sample simulation sampling function, which makes it more convenient to create working curves through a thermal desorption instrument
5、Automatically achieve functions such as desorption, blowing adsorption, re desorption, sample injection, and back blowing cleaning
6、Low temperature secondary desorption utilizes electronic refrigeration and second-order thermal desorption processes to ensure a narrow chromatographic peak shape
7、The sample transfer tube and injection valve have automatic backflushing function to avoid cross contamination between different samples
8、For active substance analysis, elastic quartz tubes can be selected as sample transfer tubes
9、Equipped with a dedicated interface that can synchronously start various GC, GCMS, and chromatographic data processing workstations both domestically and internationally
